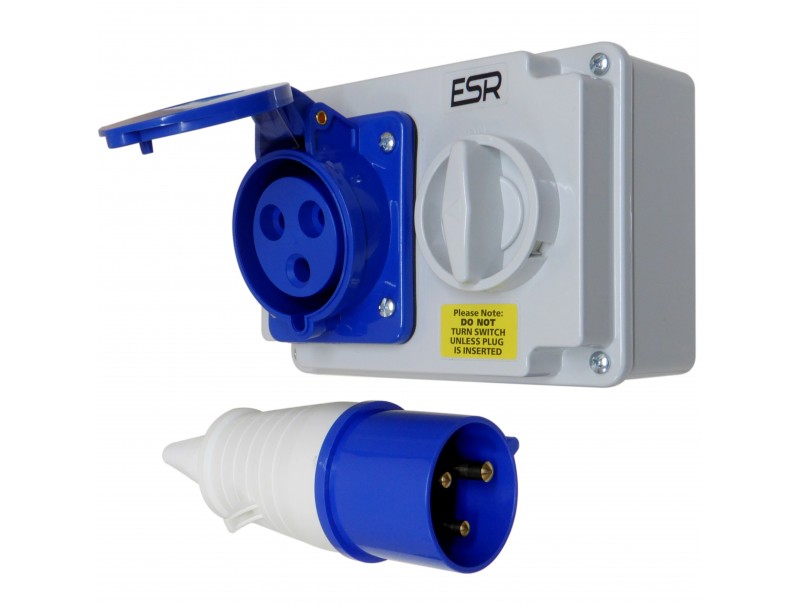

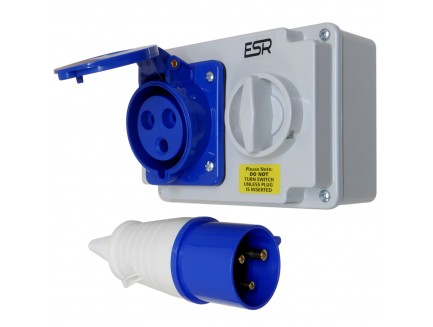

This 32A 3-pin (2P+E) interlock socket and plug set is an ideal solution for industrial, outdoor, and temporary power supply setups. The interlock mechanism ensures enhanced safety by preventing the switch from being turned ON unless the plug is fully inserted. Additionally, the switch is lockable in the OFF or ON positions to prevent unauthorized or accidental operation.

With an IP44 splashproof rating, this socket and plug combination is suitable for catering, caravan parks, marinas, and other demanding environments. It complies with IEC309-2 (equivalent to IEC60309-2 / EN60309 / CEE17 / BS4343) standards for reliability and performance.

The set includes 2x M25 IP68 cable glands designed for cables with diameters of 12-15mm, ensuring secure and watertight connections. Featuring 9 cable entry cut-outs, the socket offers flexible installation options for various setups.

• Socket and Plug Configuration: 32A 3-pin (2P+E), earth pin at 6h position
• Voltage Rating: 220-250V
• Interlock Mechanism: Prevents switching ON unless plug is fully inserted
• Safety: Switch lockable in the OFF or ON positions
• Cable Glands: Includes 2x M25 IP68 glands for 12-15mm diameter cables
• Cable Entry Cut-Outs M20/M25: 3 on top, 2 on one side, 2 on the bottom, 2 on the rear
• Colour Code: Blue (for 220-250V applications)
• Standards Compliance: IEC309-2, IEC60309-2, EN60309, CEE17, BS4343
• IP Rating: IP44 splashproof for outdoor and industrial use
• Dimensions: (H)120mm x (W)170mm x (D)120mm (socket lid closed)
• Applications: Ideal for catering setups, caravan parks, marinas, and use throughout Europe

This socket and plug set offers a safe, reliable, and durable power connection solution for industrial and temporary power distribution needs. The interlock mechanism, combined with its rugged build and flexibility, makes it suitable for various demanding environments.
