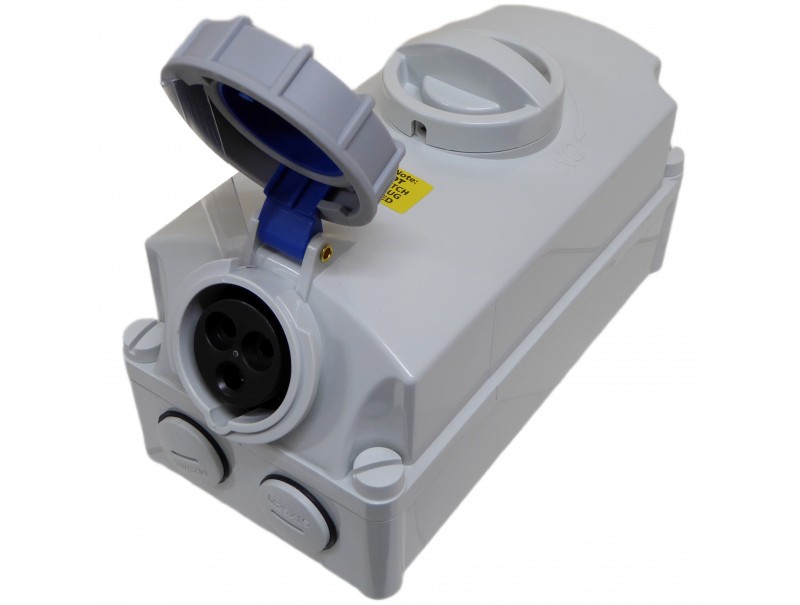

16A 3 Pin 220–250V IP67 Interlock Socket – 2P+E, Blue, Single Phase

This 16A 3 Pin Socket with Interlock Switch is a robust and weather-resistant power outlet designed for industrial, workshop, or outdoor environments. Rated at 220–250V, this single-phase IP67 socket includes a safety interlock mechanism that prevents the socket from switching on unless a compatible plug is fully inserted—offering an extra layer of electrical safety.

Blue colour coding indicates its 220–250V rating under the IEC60309 standard. The unit includes 2 x M25 threaded top and bottom cable entry knockouts, each supplied with a threaded blanking plug for unused entries.

Compatible with standard 16A 3 pin (2P+E) blue industrial plugs, this interlocked socket ensures secure connections and is ideal for high-vibration or outdoor areas where accidental disconnection or exposure to the elements is a concern.

• Current Rating: 16 Amp
• Voltage Rating: 220–250V AC Poles: 2P+E (3 Pin)
• Phase: Single Phase
• Interlock Mechanism: Switch cannot be turned on unless plug is fully inserted
• Colour Code: Blue (Voltage-coded per IEC60309)
• Protection Rating: IP67 – Dust tight and protected against immersion
• Cable Entry: 2 x M25 threaded knockouts (top and bottom)
• Blanking Plugs: Supplied for unused cable entries
• Housing Material: Heavy-duty industrial-grade plastic
• Dimensions: (H)248mm x (W)119mm x (D)125mm
• Mounting: Surface mount
• Standards: IEC60309 / IEC309-2 / EN60309 / BS4343 Compliant
• Compatible With: 16A 3 Pin Blue Plugs (Male) only
• Inside Dimensions: (L)240 x (W)190 x (D)90mm

Ideal for workshops, event power distribution, caravans, outdoor catering, marine, construction sites, and any area requiring safe, weatherproof single-phase power connection with added interlock safety.
