Availability: SPECIAL ORDER - 2-3 DAYS BEFORE DISPATCH
IP67 32A 4 Pin 3 Phase Interlock Socket
ESR
11A6-5
New
WE DO NOT STOCK THIS PRODUCT INSTORE - THEREFORE IT IS SPECIAL ORDER AND WILL TAKE A FEW DAYS BEFORE IT IS DISPATCHED

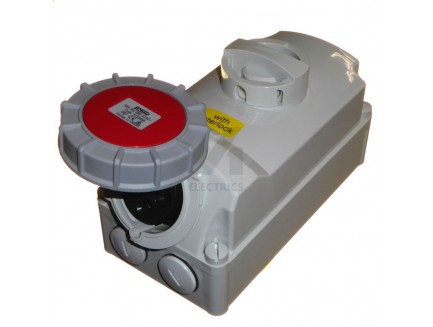

32A 4 pin (3P+E) three phase 380 - 415V industrial wall / surface mount socket with interlock
1 x 32 amp 4 pin socket with interlock switch
- 4 pin ( 3 pole with earth, 3P+E ) three phase
- 380 - 415 volt
- IP67 rated - Dust tight and is safe to use outside in heavy rain
- Dimensions: (L)255 x (W)120 x (D)140mm
- 2 x 29mm threaded cable entry in bottom & top, includes PG21 screw in blinds
Standard safety feature - socket will only accept a 32 amp 4 pin plug, no other size will fit.
The interlock switch is an extra safety feature - the power can't be switched on unless a plug is inserted in the socket, the switch can also be locked in the 'OFF' position.
| Voltage Range | 380 - 415V | Red |
| Amperage | 32A (amp) |
| Pins | 4 Pin | 3P+E |
| Connector Type | Interlocked Socket |
| IP Rating | IP67 |
| Package Quantity | 1 |
| Weight | 1160 Grams |
| Brand | ESR Enterprise Ltd |
| MPN | SI32446 |
| Country Of Origin | China |
